TMT Bars, also called Thermo-Mechanically Treated bars, are one of the most commonly used materials in construction for reinforcement purposes. The bar’s design and composition are carefully crafted to ensure that they offer the required reinforcement strength, durability, and resistance necessary to withstand the demands of modern construction. Among the notable design features of TMT bars is the presence of ribs. Ribs on TMT bars or Thermo-Mechanically Treated bars are raised patterns on the surface of the bars that run along their length. These ribs are a prominent design element of TMT bars and are created during the manufacturing process using a controlled cooling technique. In this blog, we will discuss why TMT bars are designed with ribs and the advantages they bring to construction.
Provides excellent adhesion strength
The primary reason why TMT bars are designed with ribs is to increase their surface area and improve the adhesion strength to concrete. The ribs are the raised patterns on the surface of the TMT bars that allow them to bond seamlessly with concrete and withstand tensile forces. TMT bars with smooth surfaces may not bond well with concrete, leading to slippage, and ultimately compromising the overall strength and stability of the structure. By contrast, the ribs provide more excellent adhesion strength, thus improving the overall stability of the structure. At Birla TMT we provide TMT Bars with well-designed ribs for superior bonding and reinforced strength. Visit us at https://avsteel.in/ for more details.
Control the deformation during stress
The ribs on TMT bars also serve another important purpose in construction. They help to control the deformation of the bars during tension, ensuring that they do not snap or break under stress. When subjected to load or stress, TMT bars elongate and deform, but with ribbed bars, this happens in a controlled manner without undue impact or material fatigue. The controlled deformation helps to absorb the force and energy produced by the structure, reducing the likelihood of collapses or structural failures.
Improves ductility
The ribs on TMT bars also contribute to improving their ductility. Ductility refers to a material’s ability to deform or stretch under stress without cracking or breaking. TMT bars need to have high ductility to absorb shocks produced during construction and subsequent maintenance. With the ribs restraining and controlling the bars’ deformation, TMT bars can offer higher ductility than is usually possible with plain bars.
Types of Ribs Patterns on TMT Bars

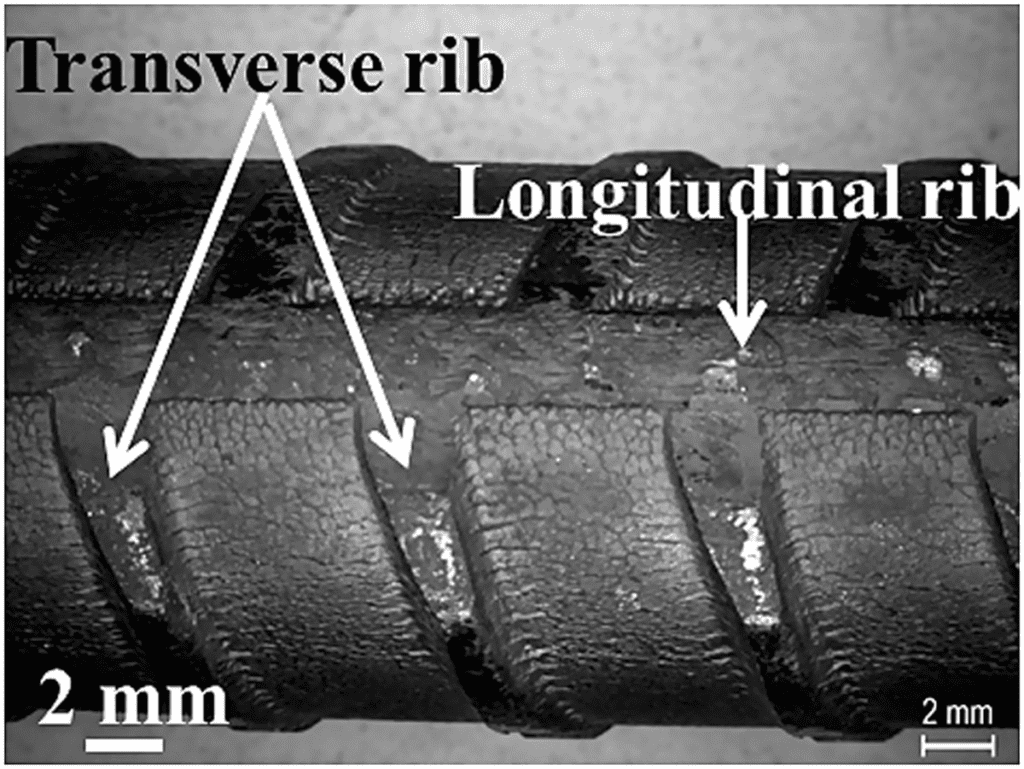

There are generally two types of rib patterns on TMT bars – longitudinal ribs and transverse ribs:
- Longitudinal Ribs – These ribs run parallel along the length of the TMT bar and provide a larger bonding surface area. They are spaced evenly on the bars, and their shape and depth can vary depending on the manufacturer and the intended application.
- Transverse Ribs – These ribs run perpendicular to the length of TMT bars and are also known as spiral ribs. They provide additional strength, deformation control, and ductility to the bars. They are evenly spaced and spiral around the bar’s surface, providing an additional bonding surface area for reinforced concrete structures.
Some TMT bar manufacturers use both types of ribs to provide improved adhesion, stability, and strength to the building structure, ensuring that it can withstand even the toughest loads. The rib pattern and configuration will depend on the specific requirements of the application and the manufacturer’s quality standards.
Conclusion
In conclusion, TMT bars with ribs are an ideal choice for construction in the 21st century. The ribs increase the surface area of the bars, improving their adhesion strength and preventing slippage. The controlled deformation offered by the ribs during tension helps to absorb the force and energy produced by the structure, while also improving its ductility. As such, TMT bars with ribbed designs should be the go-to reinforcement material to ensure a structurally sound, durable, and long-lasting building. At Birla TMT we provide the best TMT bars for your dream home. Visit our website https://avsteel.in/ for any dealership inquiry and follow us on Instagram @birlatmtsteel_rajasthan for insights.
Happy Reading!
